Product Description:

Our multi-layer PCB is designed using the latest technology and advanced manufacturing techniques, with a thickness of 2.0mm, 2OZ copper thickness, the black solder mask provides a layer of insulation to help prevent damage from electrical shorts and other hazards that may arise during use, it is rugged and durable to withstand the harshest conditions.

Features:

• Product Name: Multilayer PCB Fabrication
• Min. Hole Size: 0.25mm
• Board Thickness: 2.0mm
• Surface Finish: Immersion Silver
• Layer Count: 6-Layer
• Silkscreen Color: White

Our Multilayer PCB Fabrication service offers top-quality Multi-Layer PCB Manufacturing, Multi-Layer Printed Circuit Board Production, and Multi-Layer PCB Component Assembly. With a minimum hole size of 0.25mm and a board thickness of 2.0mm, our boards are built to last. The immersion silver finish and white silkscreen color make for a sleek and professional look.

Customization:

Our product customization services allow for Multi-Layer PCB Component Assembly, Multi-Layer Printed Circuit Board Production, and Multi-Level Printed Circuit Board Fabrication. Contact us today to discuss how we can customize our Multilayer PCB Fabrication product to meet your specific needs.

FAQ:

Q: What is the brand name of the multi-layer PCB manufacturing product?

A: The brand name is JIETENG.

Q: What is the model of the multi-layer PCB manufacturing product?

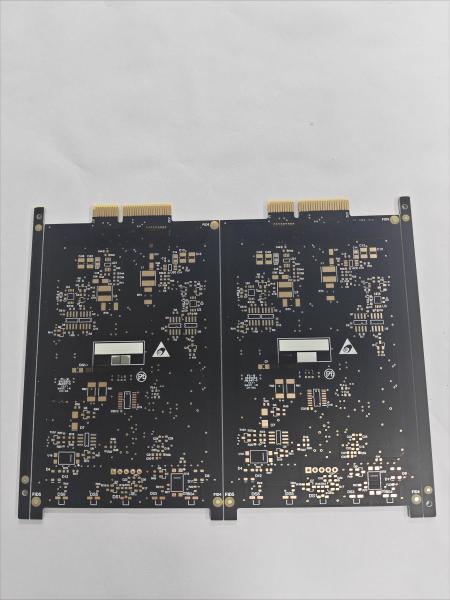

A: The model is 6-layer multi-layer circuit board CCTV camera

Q: Where is the multi-layer PCB manufacturing product manufactured?

A: Made in Shenzhen, China.

Q: How many layers can be manufactured at most?

A: We can manufacture up to 20 layers for this product.

Q: What is the typical lead time for manufacturing?

A: The lead time varies depending on the complexity of the design, but it is usually between 5 and 15 working days.

Q. What information is required for PCB quotation?

A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, mask and silk screen color, etc. )

Q. What file formats are accepted for PCB production?

A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
