Product Description:

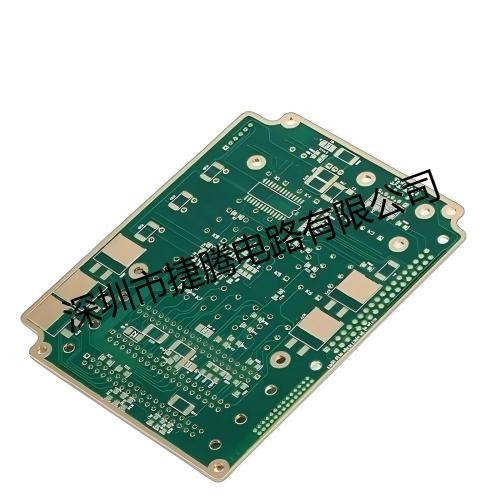

The 4-layer gold plated 80U PCB is made from high-quality materials, including FR4 HF material and TP-2. This ensures that the PCB is rugged and durable, capable of withstanding the most challenging application demands. The copper thickness of this PCB is 2oz, which provides excellent conductivity and ensures that signals are transmitted accurately and efficiently.

One of the main features of this hybrid printed circuit board is its impedance control. With this feature, it helps minimize signal loss, noise, and distortion, ensuring that your application performs at its best. This makes this PCB an ideal choice for a wide range of applications, including telecommunications, medical devices, and industrial control systems. The 4-layer gold plated 80U PCB is a top-notch hybrid printed circuit board that offers outstanding performance, reliability, and flexibility. Whether you are in the telecommunications, medical, or industrial fields, this PCB is sure to meet your needs and exceed your expectations.

Technical Parameters:

Product Name	GPS Navigation Radar
Board Thickness	1.88mm
Silkscreen Color	White
Copper Thickness	2oz
Surface Finish	GOLD-PLATED/ENIG
Layer	4-Layer
Test	Flying Probe Test
Material	FR4 HF Material, TP-2
Solder Mask Color	Green
Min. Hole Size	0.5mm

Applications:

Hybrid PCB is widely used in various industries such as automotive, aerospace, medical and telecommunications. It is a versatile product that can be used in different applications and scenarios. It is a high-quality product made in China and is designed to provide excellent performance and reliability.

FAQ:

Q1. What information is needed for PCB quotation?

A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )

Q2. What file formats are accepted for PCB production?

A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.

Q3. Are my files safe?

A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.

Q4. What is the minimum order quantity?

A: Our company does not have a minimum order quantity. We are able to flexibly handle small and large batches.

Q5. How much is the shipping cost?

A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
