| Brand Name : | Shenzhen Jieteng Circuit Co., Ltd. |
| Model Number : | High frequency circuit board |
| Certification : | UL IATF16949 |
| Price : | 11~35 USD |
| Delivery Time : | 10-12 work days |
| Supply Ability : | 1000pcs/day |

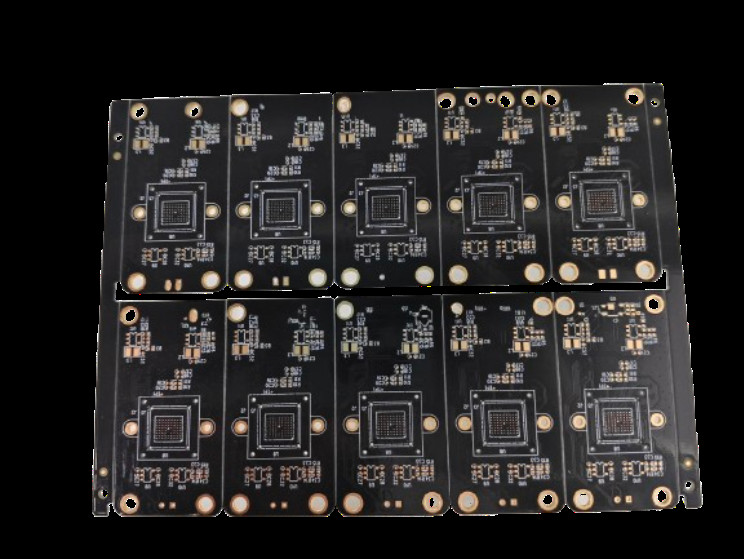

Our multi-layer printed circuit boards feature white text on both
sides. They feature an ENIG, lead-free tin-spray finish to ensure
high-quality performance and long-lasting durability. Our
multi-layer printed circuit boards are 1.57mm thick with a
tolerance of +/-10%.
Our multi-layer printed circuit boards are UL and RoHS certified,
meeting strict safety and environmental standards to ensure
reliable product performance.
| Certificates | UL, RoHS |
| Surface Finish | ENIG Lead-free Tin-spray |
| Thickness Finished | 1.57mm, +/-10% Tolerance |
| Application Scenario | Applicable To Aerospace |
| Raw Material | FR4 HF Material,Rogers |
| Legend | White, For Both Side |
| Solder Mask Color | Green, Black |
| Different Impendance | 75-150 ohm+/-10% |
| Copper thickness | 1 oz |
Our multilayer printed circuit boards have a wide range of
applications. They are often used in the aerospace industry and
have high-frequency and high-speed signal transmission
capabilities. These circuit boards use high-performance materials
such as FR4 HF materials, Rogers materials, so that the drawings
can withstand extreme conditions, which is very suitable for space
exploration missions and satellite technology.
Our multilayer printed circuit boards are also widely used in
medical devices, military equipment, and industrial control
systems. They are suitable for electronic devices that require
high-speed data transmission, low noise, and high precision.
Q1. What is the brand name of this Multilayer Printed Circuit Board?
A: The brand name is Shenzhen Jieteng Circuit Co., Ltd.
Q2. What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
Q3. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
Q4. Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.
Q5. What is the minimum order quantity?
A: Our company does not have a minimum order quantity. We are able to flexibly handle small and large batches.
Q6. How much is the shipping cost?
A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
|
|
