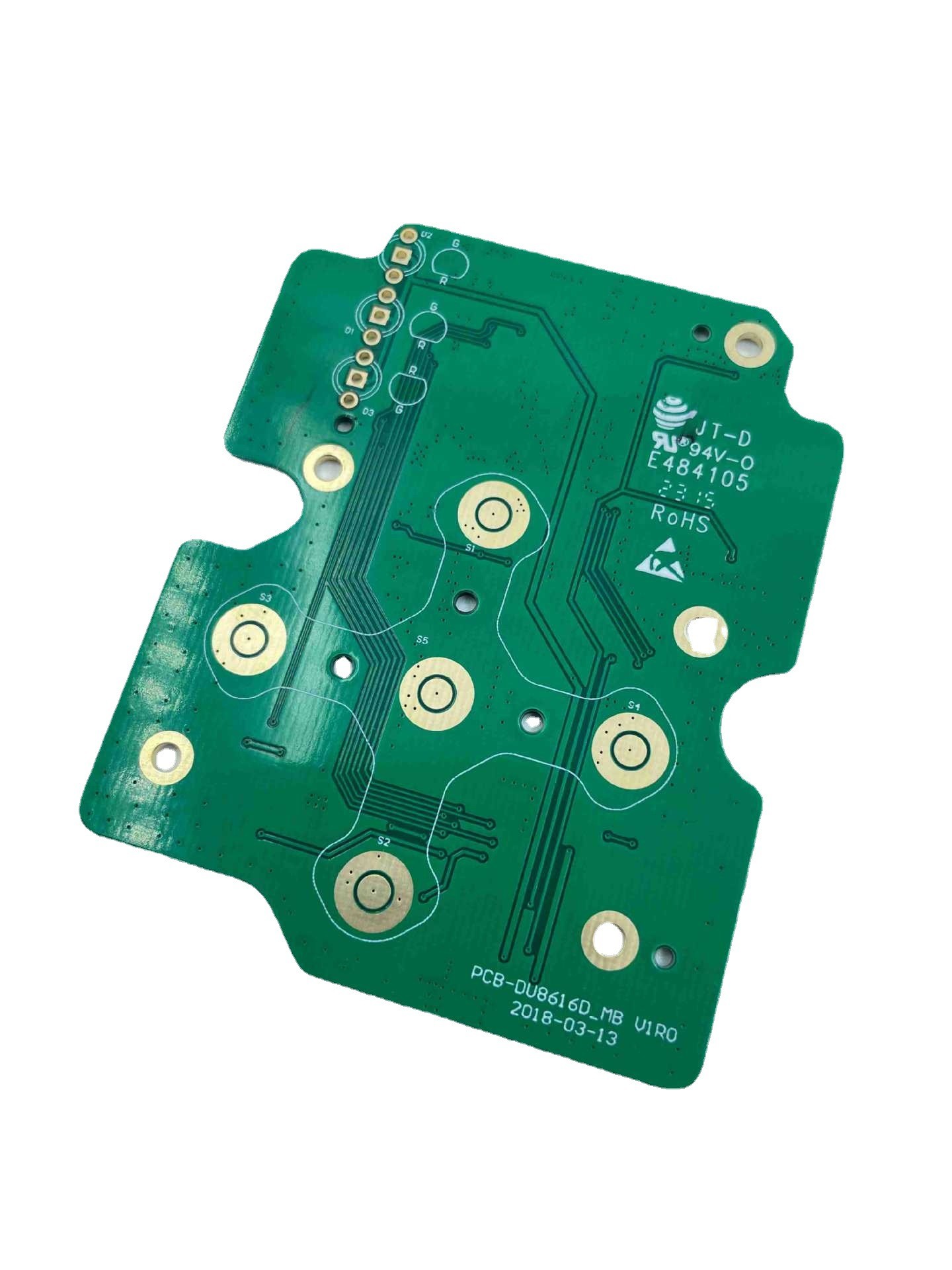

Immersion gold on the surface of Rogers 4350 plate 4-layer board
Here are some details about the Rogers 4350 4-layer board with immersion gold finish:
The board is made from Rogers 4350 material, a high-performance
laminate known for its excellent thermal and mechanical properties.
Rogers 4350 is typically used in high frequency applications such
as radio frequency and microwave circuits.
The board has four layers, which means it has four layers of
conductive material separated by insulating layers. Four-layer
boards are typically used in applications requiring higher
complexity than two-layer boards.
The board has an immersion gold finish, which is a finish that
provides a flat and even surface that's perfect for soldering. The
immersion gold surface also protects the copper traces on the board
from oxidation and corrosion.
The combination of Rogers 4350 material with an immersion gold
finish indicates that the board is designed for high frequency
applications requiring high performance and reliability.
| Item | capability |
| Base Material | FR-4, High TG FR-4 , Halogen Free material ,CEM-3,CEM-1,PTFE,Rogers ,Arlon ,Taconic,Aluminum base,Teflon,PI ,etc |
| Layers | 1-60 |
| Finished inner/outer copper thickness | 0.5-6OZ |
| Finished board thickness | 0.2-7.0mm(≤0.2mm needs review),≤0.4mm for HASL |
| Board thickness≤1.0mm: +/-0.1mm 1Board thickness>2.0mm: +/-8% | |
| Max panel size | ≤2sidesPCB: 600*1500mm Multilayer PCB: 500*1200mm |
| Min conductor line width/spacing | Inner layers: ≥3/3mil Outer layers: ≥3.5/3.5mil |
| Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm |
| Drilling precision: first drilling First drilling: 1mil Second drilling: 4mil | |
| Warpage | Board thickness≤0.79mm: β≤1.0% 0.80≤Board thickness≤2.4mm: β≤0.7% Board thickness≥2.5mm: β≤0.5% |
| Controlled Impedance | +/- 5 % Ω(<50Ω),+/-10%(≥50Ω),≥50Ω+/-5% (needs review) |
| Aspect Ratio | 15:01 |
| Min welding ring | 4mil |
| Min solder mask bridge | ≥0.08mm |
| Plugging vias capability | 0.2-0.8mm |
| Hole tolerance | PTH: +/-3mil NPTH: +/-2mil |
| Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
| Solder mask color | Green,yellow,black,blue,red,white,matte green |
| Component mark color | white,yellow,black |
Shenzhen Jieteng Circuit Co., Ltd. is a Printed Circuit Board (PCB) manufacturer located in Shenzhen, China. The company specializes in the production of high-quality PCBs for a wide range of applications including industrial, automotive, telecom and consumer electronics.
The company offers a wide range of PCB solutions including single-sided, double-sided and multi-layer PCBs, as well as specialized PCBs for high temperature, high frequency and other demanding applications. We also provide additional services such as surface preparation, solder mask application and screen printing.
Shenzhen Jieteng Circuit Co., Ltd. is committed to quality and innovation, the company utilizes advanced manufacturing equipment and technology to ensure their PCBs meet the highest standards. With a team of experienced engineers and technicians, we work closely with our customers to ensure our PCBs meet their specific requirements.
In addition to its commitment to quality, the company places great emphasis on customer service. We work closely with our customers to provide individual solutions and support throughout the PCB manufacturing process from design to delivery.
|
|
