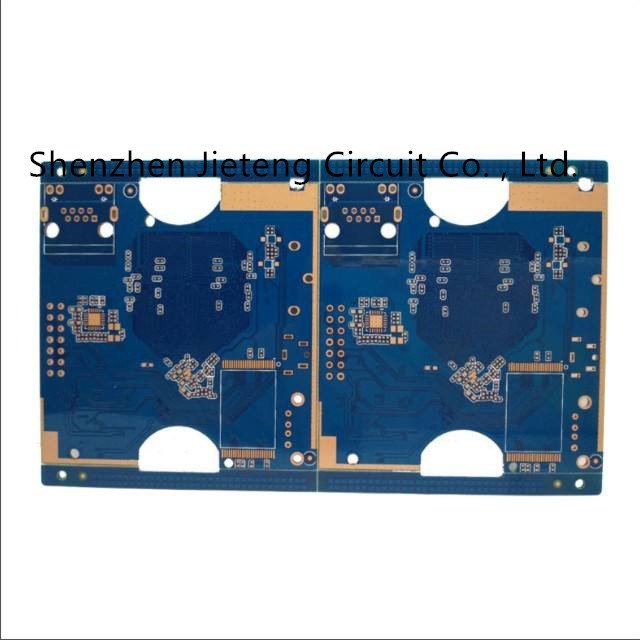

    ODM Polyimide Multilayer PCB Fabrication ENEPIG Finish

    Ask Lasest Price
    Brand Name : JIETENG
    Model Number : Rogers
    Certification : ISO/TS16949/RoHS/TS16949
    Price : Negotiable
    Payment Terms : Negotiable
    Supply Ability : 150000 Square Meter/Square Meters per Year
    Delivery Time : 5-8 days delivery
    • Product Details
    • Company Profile

    ODM Polyimide Multilayer PCB Fabrication ENEPIG Finish

    High quality multilayer PCB assembly/PCB manufacturer in China


    Essential details
    Place of Origin:
    Guangdong, China
    Base Material:
    Shengyi material or Lianmao material
    Copper Thickness:
    0.5oz-4oz
    Board Thickness:
    0.1-7MM
    Min. Hole Size:
    0.15MM(Mechanical),0.1MM(HDI)
    Min. Line Width:
    0.075MM
    Min. Line Spacing:
    0.075MM
    Surface Finishing:
    OSP/Gold Finger/LFHASL/ENIG/ENEPIG
    Board Size:
    Customize
    Product name:
    Multilayer circuit board
    Material:
    FR-4/KB material/Shengyi or Lianmao
    MOQ:
    1 PCS
    Application:
    Medical, industrial control, communication, automobile
    Sheet thickness:
    0.1MM-7MM
    Type:
    Multilayer circuit board
    Certificate:
    TS16949.ISO14001.ROHS. ISO9001


    Project
    Process Capability
    Detailed explanation of pcb process
    layers
    1-20 layer PCB circuit board
    The number of pcb layers refers to the number of layers of the design file. Currently, 1-12 through-hole boards can be produced.
    Plate type
    FR-4 rigid board /aluminum substrate
    FR-4 sheet (A-grade Kingboard material, A-grade Guoguo material)/Aluminum base sheet {Halogen-free circuit board}
    Ink
    Guangxin/Rongda/Lanbang
    The quality of the ink directly affects the solder resist performance of the PCB, which in turn directly affects the performance of the product.
    Maximum size
    680mm*1200mm
    Maximum size of double-sided pcb board production: 680x1200mm, maximum size of four or six-layer pcb board production: 680x640mm
    Plate thickness range
    0.4--2.0mm
    The current custom production pcb board thickness: 0.4/0.6/0.8/1.0/1.2/1.6/2.0--3.0mm
    Dimensional Accuracy
    ±0.15mm
    CNC outline tolerance ±0.15mm, V-cut plate outline tolerance ±0.15mm
    Plate Thickness Tolerance ( t≥1.0mm)
    ± 10%
    Please note: due to production process reasons (copper sinking, solder mask, pad spraying will increase the thickness of the board), the tolerance is generally positive.
    Plate Thickness Tolerance ( t<1.0mm)
    ±0.1mm
    Please note: due to production process reasons (copper sinking, solder mask, pad spraying will increase the thickness of the board), the tolerance is generally positive.
    Minimum line width line moment
    4mil/4mil (0.1mm)
    At present, 4mil line width can be customized for production , and the line width and line torque are as large as 4mil
