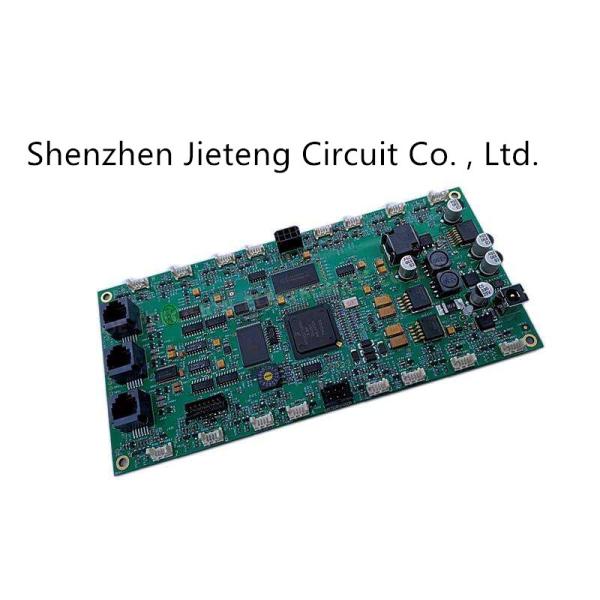

    OEM 18um-70um Flexible Printed Circuit Board PCB Assembly

    PCB board manufacturers assemble multilayer printed circuit boards

    Essential details
    Type:
    consumer electronics pcba
    Place of Origin:
    Guangdong, China
    Supplier Type:
    OEM/ODM
    Copper Thickness:
    18-70um
    Base material::
    FR4
    Thickness::
    0.4/0.6/0.8/1.0/1.2/1.6/2.0 ..
    The smallest aperture::
    The 0.2 mm
    Surface treatment::
    OSP, tin, spraying, gold plating

    PROJECT
    PROCESSING CAPACITY
    DETAILED PROCESS EXPLANATION
    Production Layer Number
    1~10 floors
    According to the design documents, 1~10 layers of perforated plates can be made.
    Maximum Size
    600x600mm
    The size is too large to pass the V-cut machine below.
    Minimum Size
    7x7mm
    7mm needs to be reviewed
    Contour Tolerance
    ±0.15mm
    V-cut plate shape tolerance 0.15mm
    Plate Thickness Specification
    0.4~3.2mm
    0.4/0.6/0.8/1.0/1.2/1.6/2.0 ..
    Thickness Tolerance
    ±10%
    Copper deposition, solder resistance, tin spraying and other processes will affect the plate thickness.
    Limit Line Width
    5mil(0.127mm)
    The line width is larger than 6mil(0.15mm) as much as possible.
    Limit Line Distance
    5mil(0.127mm)
    The line spacing shall be greater than 6mll(0.15mm) as much as possible.
    Finished Copper Thickness
    1oz(35um)
    1oz is the conventional steel thickness, which can be increased to 20z and 3oz.
    Mechanical Drilling
    0.25~6.3mm
    0.25 is the minimum aperture and 6.3 is the maximum aperture.
    Hole Tolerance
    ± 0.075mm
    This tolerance is within the allowable qualified range.
    Minimum Character
    Width ≥0.15mm/ height ≥ 0.85mm
    The characters are too small, which may lead to ambiguity.
    Distance From Line To Shape
    ≥12mil(0.3mm)
    Keep a safe distance when gong or V-cut.
    Welding Resistance Type
    Photosensitive ink/matte ink
    Green/blue/white/black/red/purple oil
    Spacing-free Puzzle
    Omm
    During imposition shipment, the intermediate clearance is 0.
    Spaced Puzzle
    1.5mm
    When the splice spacing is less than 1.5mm, the difficulty of gong edge will be increased.
