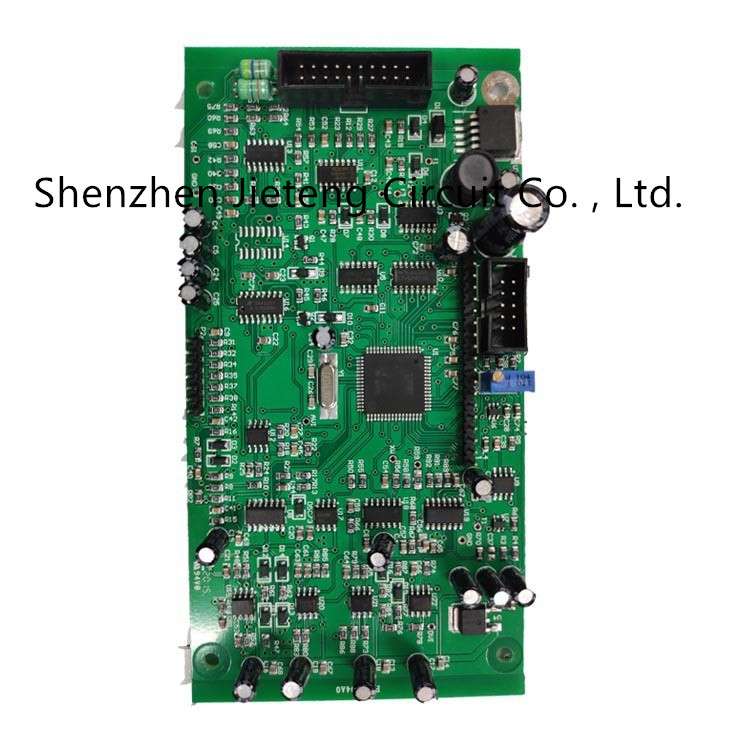

    IPC-A-610D New Energy Vehicle Mobile Multilayer PCB Fabrication Board Motherboard

    Ask Lasest Price
    Brand Name : JIETENG
    Model Number : Rogers FR4
    Certification : ISO/TS16949/RoHS/TS16949
    Price : Negotiable
    Payment Terms : Negotiable
    Supply Ability : 150000 Square Meter/Square Meters per Year
    Delivery Time : 5-8 days delivery
    • Product Details
    • Company Profile

    IPC-A-610D New Energy Vehicle Mobile Multilayer PCB Fabrication Board Motherboard

    Custom Circuit Board PCB New Energy Vehicle Motherboard Multilayer PCB Fabrication

    Essential details
    Place of Origin:
    Guangdong, China
    Base Material:
    FR-4 / Aluminum / CEM-3 / Rogers
    Copper Thickness:
    0.5-4OZ / 1Oz / 2Oz or Custom
    Board Thickness:
    0.2~6mm
    Min. Hole Size:
    T / 2mm / 0.2 Mm / 0.15mm or Custom
    Min. Line Width:
    0.15mm / 0.1mm or Custom
    Min. Line Spacing:
    0.15mm / 0.1mm/ 4mil or Custom
    Surface Finishing:
    HASL/Immersion gold/Flash gold/plated silver/OSP
    Board Size:
    Customized color and size
    Product name:
    Pcb Board Assembly
    Service:
    One-Stop OEM Service
    Application:
    Electronics Device
    Testing Service:
    100% AOI Testing
    Solder mask color:
    Black.Red.Yellow.White.Blue.Green
    Layer:
    1-24 Layers

    Board shape
    Rectangular,Round,Slots,Cutouts,Complex,Irregular
    Board Cutting
    Shear,V-score,Tab-routed,Counter sunk
    Board thickness
    0.2~8.0mm,Flex0.01~0.25“
    Copper weight
    0.5oZ~12oZ
    Solder mask
    Double-sided green LPI,Also support red,white,yellow,blue,black,purple,etc
    Silk screen
    Double-sided or single-sided in white,yellow,red,black,or negative
    Min line width/space
    0.06/0.06mm
    Max board dimensions
    25.6 inch*43.3 inch or 650mm*1100mm
    Min drill hole diameter
    0.1mm
    Surface finish
    HASL,ENIG,Immission Ti,Immisson Silver,OSp,ENEPIG,etc
    Board thickness tolerance
    ±10%
    Minimal slot width
    0.12",3.0mm,or 120 mils
    V-score depth
    20~25% of board thickness
    PTH Wall Thinckness
    >0.025mm
    PTH Hole Dia Tolerance
    ±0.076mm
    Non PTH Hole Dia Tolerance
    ±0.05mm
    Hole Position Deviation
    ±0.076mm
    Sink holes
    Yes
    Quality Standard
    IPC-A600F/MIL-STD-1050D
