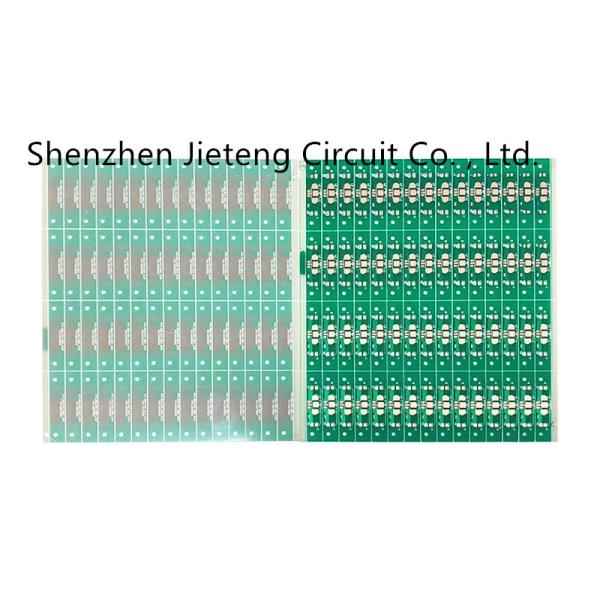

    BGA Flexible Aluminum FR4 PCB Board High Frequency

    Ask Lasest Price
    Brand Name : JIETENG
    Model Number : Rogers FR4
    Certification : ISO/TS16949/RoHS/TS16949
    Price : Negotiable
    Payment Terms : Negotiable
    Supply Ability : 150000 Square Meter/Square Meters per Year
    Delivery Time : 5-8 days delivery
    • Product Details
    • Company Profile

    BGA Flexible Aluminum FR4 PCB Board High Frequency

    High frequency mixing plate half-hole multilayer plate buried hole blind plate


    Essential details
    Model Number:
    PCB
    Place of Origin:
    Guangdong, China
    Base Material:
    Fr4, FR4, High TG FR4, High Frequency, Alum, FPC
    Copper Thickness:
    1-6oz
    Board Thickness:
    1.6mm
    Min. Hole Size:
    0.2mm
    Min. Line Width:
    4mil
    Min. Line Spacing:
    4mil
    Surface Finishing:
    HASL
    Product name::
    PCB
    PCB Standard::
    IPC-A-610 D/IPC-III Standard
    PCB Assembly Test::
    Visual Inspection (default), AOI, FCT, X-RAY
    PCB Assembly:
    SMT, Through-hole, Mixed, BGA
    PCB outline::
    Square,circle,irregular(customize)
    Size:
    customized

    PCB Capacities and Technical Specification
    Layer
    1-60 layer
    Material
    FR-4, High Tg, Isola, Aluminum, Rogers, etc
    PCB type
    Rigid, flexible, rigid-flexible
    Shape
    Rectangular, round, slots, cutouts, complex, irregular
    Max PCB dimensions
    1200mm*600mm
    Thickness
    0.2~4.0mm, Flex 0.01~0.25''
    Thickness tolerance
    ± 10%
    Copper thickness
    0.5-6 oz
    Copper thickness tolerance
    ± 0.25oz
    Surface finish
    HASL, LF HASL, Imm Gold, Imm Silver, OSP etc
    Solder mask
    Green, red, white, yellow, blue, black, orange, purple
    Silk screen
    White, black
    Silk screen min line width
    0.006'' or 0.15mm
    Min drill hole diameter
    0.01'', 0.1mm or 10 mil
    Min trace/gap
    0.075mm or 3mil
    PCB cutting
    Shear, V-score, tab-routed

    BGA Flexible Aluminum FR4 PCB Board High Frequency
