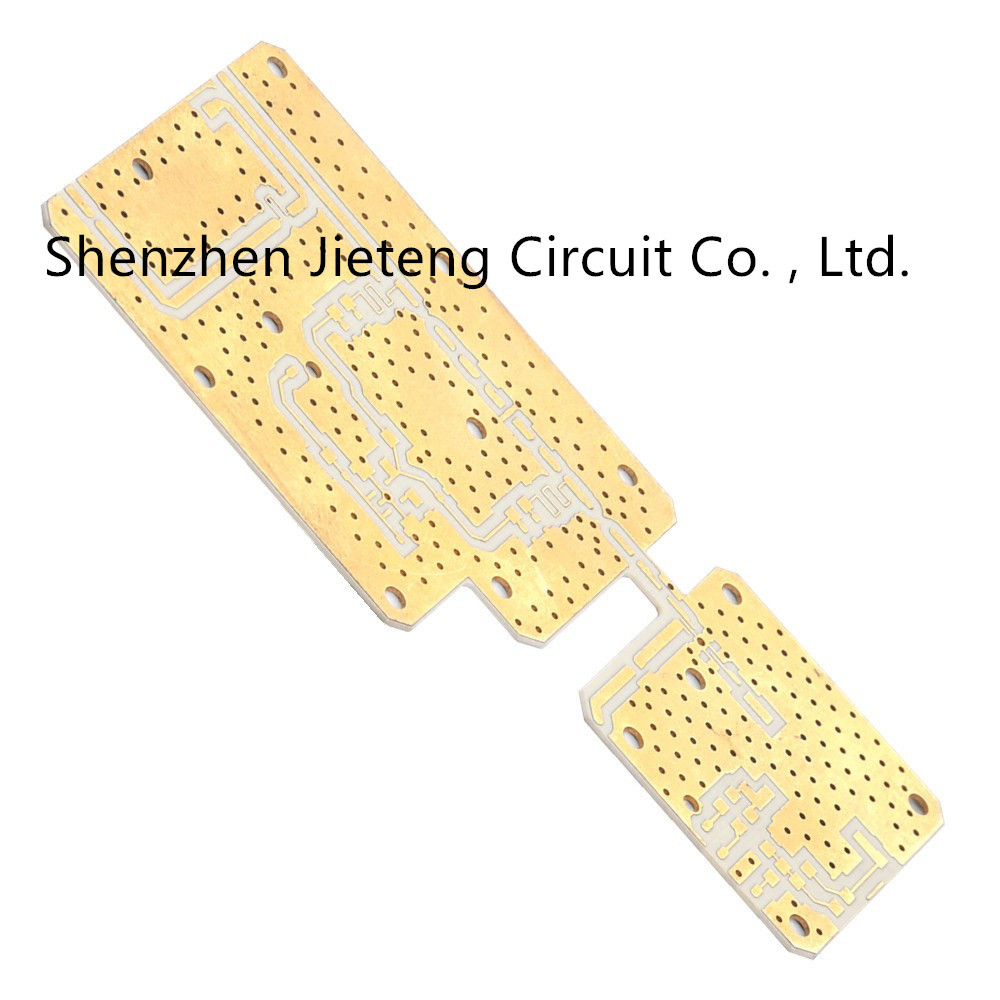

Intelligent robot circuit board Bluetooth embedded blind hole board PCB circuit board wireless router circuit board
| PCB Manufacturing Capability | |
| Item | Manufacture Capability |
| Layers | 1-50 Layers |
| Material Types | Fr-4, Fr-5, High-Tg, Halogen Free, Rogers, Isola, Taconic, |
| Arlon, Teflon, Aluminum Based,Copper Based PCB | |
| Board Thickness | 8mil-236mil |
| Min. Track Width | 3mil / 0.075mm |
| Min. Track Space | 3mil / 0.075mm |
| External Cu Thickness | HOZ-15OZ / 17um~525um |
| Internal Cu Thickness | HOZ-8OZ / 17um~280um |
| Drilling Bit Size ( CNC ) | 6mil-256mil / 0.15mm-6.50mm |
| Laser Drilling Hole Size | 4mil / 0.1mm |
| Aspect Ration | 12:01 |
| Solder Mask | Green, Blue, White, Black, Red, Yellow, Purple, etc. |
| Plugged Hole Diameter | 8mil-20mil/ 0.20mm-0.50mm |
| Impedance Control V-scoring | Min ±5%, General ±10% |
| Surface Finishing | HASL, HASL(lead Free), Immersion Gold, Immersion Tin, |
| Immersion Silver, OSP, Hard Gold( up to 100u" ) | |
PCB Manufacturing Capability:
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Component Sourcing | Yes | |
| Tolerance of PCB | ±5% | |
| Max Size of Finish Board | 700*460mm | |
| MOQ | NO MOQ (1pcs) | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
| Sub-assembly | Plastic,metal,screen | |
| Min Line/Space | 0.075/0.075mm | |
|
|
