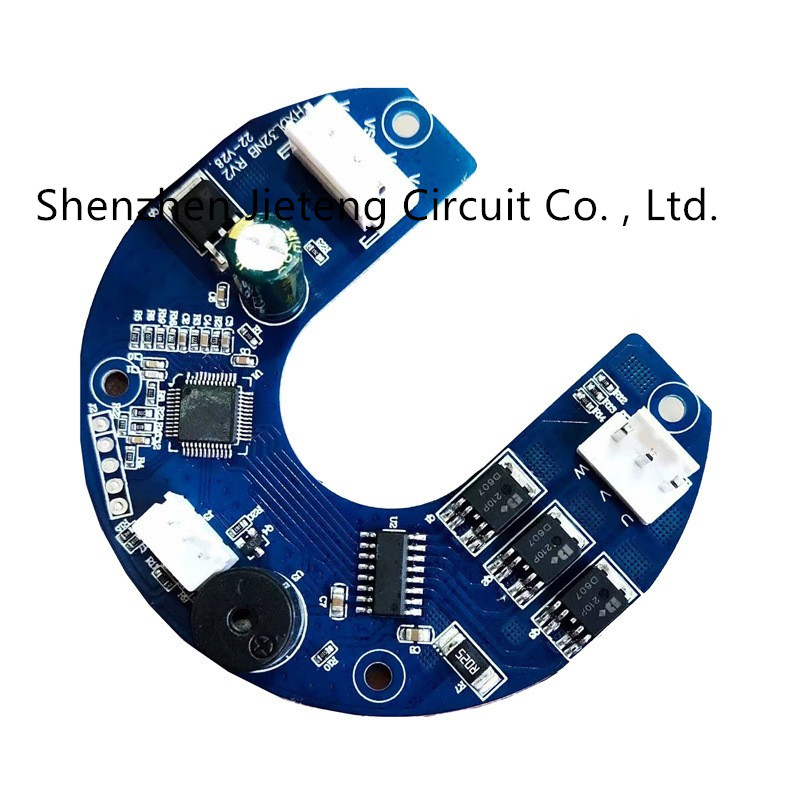

    Custom Rogers PCB Fr4 Circuit Board PCB For Communication Base Station High Frequency Board

    Ask Lasest Price
    Brand Name : JIETENG
    Model Number : Rogers High Frequency Board
    Certification : ISO/TS16949/RoHS/UL
    Price : 0.8-5USD/piece
    Payment Terms : T/T, Western Union,
    Supply Ability : 150000 Square Meter/Square Meters per Year
    Delivery Time : 5-8 days delivery
    • Product Details
    • Company Profile

    Custom Rogers PCB Fr4 Circuit Board PCB For Communication Base Station High Frequency Board

    PCB circuit board mobile charging treasure PCBA program development

    Essential details
    Type:
    Communication signal board PCBA
    Place of Origin:
    Guangdong, China
    Brand Name:
    PCB
    Supplier Type:
    Manufacturer
    Copper Thickness:
    0.5-6OZ
    Product name:
    PCB Board + Assembly
    Base Material:
    FR4/ROGERS/High TG
    Layer:
    1-24layers
    Board Thickness:
    0.2-7.0mm
    Surface Finishing:
    HASLHASL Lead freeENIGGOLD Finger
    Solder mask color:
    Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte black
    Silkscreen Color:
    Black.White.Yellow
    Min Hole Size:
    0.15mm

    PCB Layers
    1-24 Layers
    Min Soldermask bridge
    0.076mm
    Max Panel Size
    600mmx600mm
    Insulating resistance
    1E+12Ω(general)
    Min Board Thickness
    4 Layers 0.40mm, 6 Layers 0.80mm, 8 Layers 1.00mm, 10 Layers 1.20mm
    Board Thick : hole size
    0.209027778
    Min Trace Width
    0.075mm
    Shock heating
    (3 times/10 second)
    Min Trace Space
    0.075mm
    Wrap & twist
    ≤0.7%
    Min Hole Size
    0.20mm
    Electric strength
    >1.3KV/mm
    Hole wall thickness
    0.025mm
    Peel strength
    1.4N/mm
    Tolerance For PTH hole
    ±0.076mm
    solder mask hardness
    ≥6H
    Tolerance For NPTH hole
    ±0.05mm
    Flammability
    94V-0
    Hole position tolerance
    ±0.05mm
    Impedance control
    ±5%
    Tolerance for outline
    ±0.15mm
    Surface treatment
    OSP, HASL, ENIG, Immersion tin, Immersion silver

    Custom Rogers PCB Fr4 Circuit Board PCB For Communication Base Station High Frequency Board
