    Remote Control Double Sided FR4 PCB Fabrication And Assembly

    Ask Lasest Price
    Brand Name : JIETENG
    Model Number : Rogers
    Certification : ISO/TS16949/RoHS/TS16949
    Price : Negotiable
    Payment Terms : Negotiable
    Supply Ability : 150000 Square Meter/Square Meters per Year
    Delivery Time : 5-8 days delivery
    • Product Details
    • Company Profile

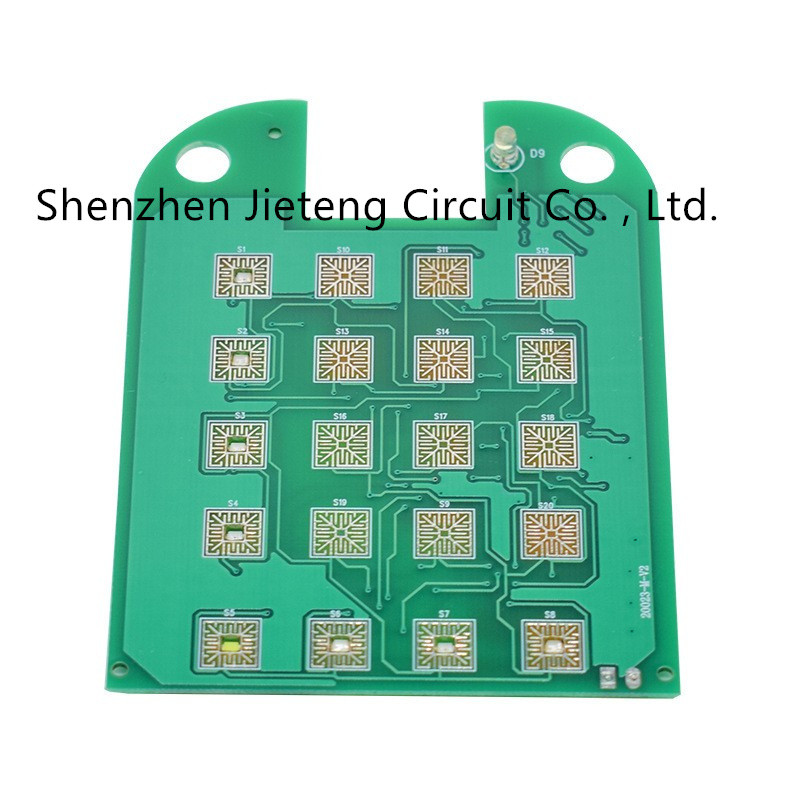

    Remote Control Double Sided FR4 PCB Fabrication And Assembly

    Remote Control Board military board resin plug hole circuit board

    Essential details
    Place of Origin:
    Guangdong, China
    Copper Thickness:
    2oz
    Board Thickness:
    0.3-3.2mm
    Min. Hole Size:
    0.15mm
    Min. Line Width:
    0.1mm
    Min. Line Spacing:
    0.1mm
    Surface Finishing:
    HASL, OSP
    Product name:
    LED Aluminum PCB
    Application:
    Led Lighting
    Solder mask color:
    White.Black
    Type:
    Customizable
    Testing Service:
    100% E-testing
    Standard:
    IPC-A-600H

    Item
    Standard(mass production)
    Advanced(Sampling)
    Layers
    1-28Layer
    30-100Layer
    Final Board Thickness
    0.3-3.2mm
    0.15-7.0mm
    Max. Panel Size
    508*640mm
    610*1400mm
    Material
    CEM-3, FR-4, (High CTI, Halogen Free, high frequency), Metal base, Ceramic, Glass base.
    CEM-3, FR-4, (High CTI, Halogen Free, high frequency), Metal base, Ceramic, Glass base.
    Material Supplier
    KB, SY, NY, ITEQ, TUC
    Rogers, Arlon, Taconic, Nelco...
    Surface Finish
    LF-HASL, OSP, ENIG, Immersion Silver, Immersion Tin
    LF-HASL, OSP, ENIG, Immersion Silver, Immersion Tin
    Impedance Control
    ±10% ohm
    ±10% ohm
    Min. Line Width/Space
    3/3mil
    3/2.5mil
    Max. Aspect Ratio
    10: 1
    30:1
    Copper Thickness
    18um, 35um, 70um, 105um, 140um
    140um(inner layer)-280um(outer layer)
    Min. Finshed Hole Size
    0.2mm
    0.1mm
    Soler Mask
    Green, white, black, grey, blue(dark-blue, light-blue), pink, organge, Purple, red, yellow
    Green, white, black, grey, blue(dark-blue, light-blue), pink, organge, Purple, red, yellow
