    4 Layer ENIG Earphone Circuit Board SMD PCB Assembly

    Ask Lasest Price
    Brand Name : JIETENG
    Model Number : Rogers FR4
    Certification : ISO/TS16949/RoHS/TS16949
    Price : Negotiable
    Payment Terms : Negotiable
    Supply Ability : 150000 Square Meter/Square Meters per Year
    Delivery Time : 5-8 days delivery
    • Product Details
    • Company Profile

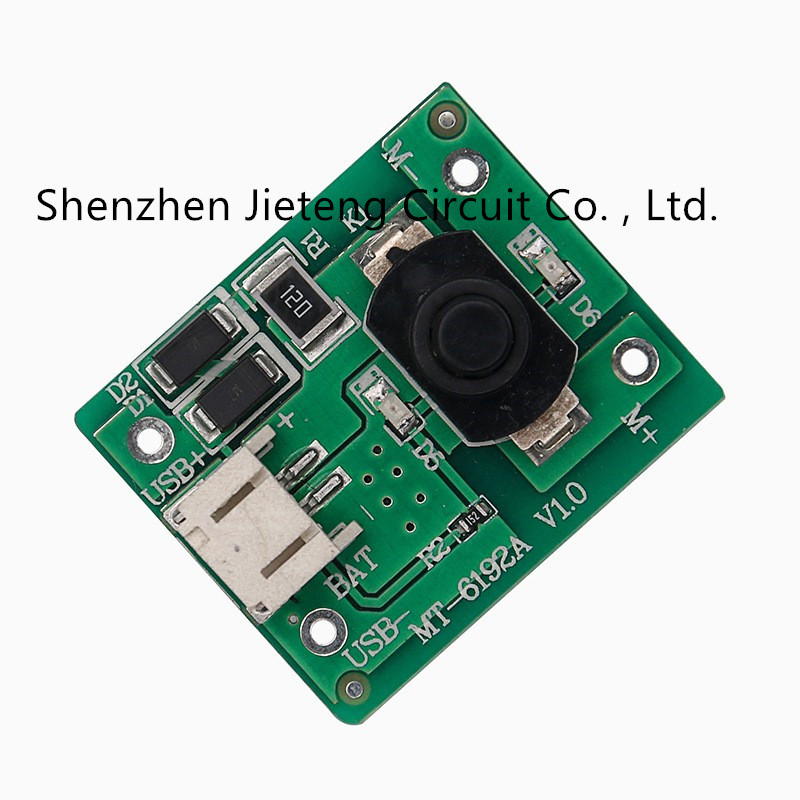

    4 Layer ENIG Earphone Circuit Board SMD PCB Assembly

    circuit board Four-layer board six-layer board PCB board buried blind hole board


    Essential details
    Model Number:
    PCB
    Place of Origin:
    Guangdong, China
    Base Material:
    FR4
    Copper Thickness:
    12um--70um
    Board Thickness:
    0.05-0.75mm
    Min. Hole Size:
    0.1mm
    Min. Line Width:
    ±0.05mm
    Min. Line Spacing:
    ±0.05mm
    Surface Finishing:
    OSP,ENIG,Immersion Tin,Immersion silver
    Solder mask color:
    Yellow,Black,white,Green,Red,Blue
    Silkscreen color:
    white/black
    Assembly Service:
    SMD/DIP/BGA/COB component assembly

    Products Description
    Seq
    Item
    Standard
    Special
    1
    Production Capability
    Single-sided:20,000M²/Month
    N/A
    Double-sided/Multi-layers:10,000M²/Month
    N/A
    2
    Base Material
    Polyimide ( PI )
    Polyester (PET)
    3
    Layers
    Flexible Printed Circuit(FPC) Board:1~6layers
    8Layer
    Rigid-Flex Board:2~6layers
    8Layer
    4
    Maximum Size
    250*1200mm
    500*1200mm
    5
    Maximum Thickness
    0.75mm
    N/A
    6
    Minumum Thickness
    0.05mm
    N/A
    7
    Product thickness tolerance
    ± 0.03mm
    ± 0.02mm
    8
    Copper Thickness
    12um (1/3OZ),18um (1/2OZ) , 35um (1OZ), 70um (2oz)
    6um(1/4OZ), 140um (4OZ)
    9
    Minimum Line Width/ Distance between stitchings
    ± 0.05mm
    ± 0.03mm
    10
    Stiffener material type
    PI / FR4 / PET / Steel piece
    N/A
    11
    Etching tolerance
    ± 0.02mm
    N/A
    12
    Minimum Hole Diameter
    0.1mm
    N/A
    13
    Hole tolerance
    PTH: +/- 0.05mm
    NPTH: +/-0.03mm
    N/A
    14
    Outline profile
    Punching , Laser cut
    N/A
    15
    Outline Dimension tolerance
    ± 0.1mm
    ± 0.05mm
    16
    Solder mask color
    Yellow,Black,white
    Green,Red,Blue
    17
    Surface treatment
    OSP: 0.2-0.5um
    ENIG: Au 0.03um - 0.15um
    Immersion Tin:0.5-1.5um
    Immersion silver: 0.1-1.2um
    Gold plating: Au 1-150U’’
    HASL : 1- 20um
    18
    Thermal shock test
    288 ± 5 ℃ , 10S , 3times
    N/A
    19
    Environmental Requirement
    ROHS
    N/A

    4 Layer ENIG Earphone Circuit Board SMD PCB Assembly
