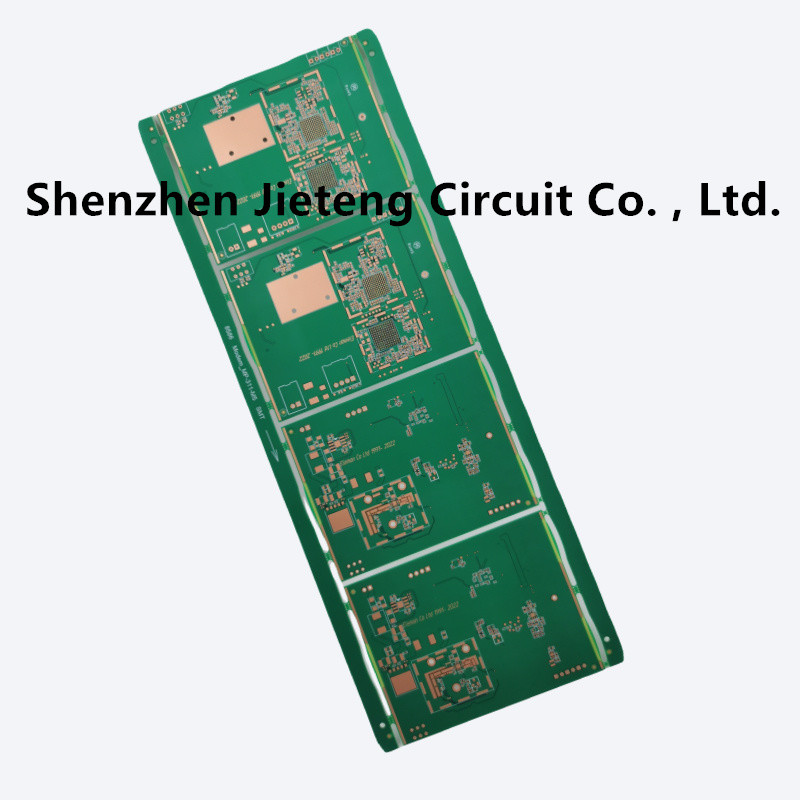

    Aluminum SMD PCB Board Assembly Service Immersion Gold

    Ask Lasest Price
    Brand Name : JIETENG
    Model Number : PCB
    Certification : ISO/TS16949/RoHS/TS16949
    Price : Negotiable
    Payment Terms : Negotiable
    Supply Ability : Negotiable
    Delivery Time : 5-7 days delivery
    • Product Details
    • Company Profile

    Aluminum SMD PCB Board Assembly Service Immersion Gold

    Multi-layer control board, single and double-sided PCB circuit board WIFI camera circuit board PCBA program development


    Overview
    Essential details
    Model Number:
    PCB
    Place of Origin:
    Guangdong, China
    Brand Name:
    FS-PCB
    Base Material:
    FR4, CEM3, PTFE, Aluminum etc
    Copper Thickness:
    0.3-3oz
    Board Thickness:
    1.6mm
    Min. Hole Size:
    01mm
    Min. Line Width:
    0.15mm
    Min. Line Spacing:
    0.15mm
    Surface Finishing:
    HASL, OSP, Immersion Gold/Tin
    Board Size:
    Custom
    Hole Tolerance:
    PTH: ±0.075, NTPH: ±0.05
    Solder Mask:
    Green/black/blue/white/red
    Finished Thickness Tolerance:
    ±5%
    Profiling Punching:
    Routing, V-CUT, Beveling
    Peelable:
    0.3-0.5mm
    Copper Plating Hole:
    18-40um
    Impedance Contorl:
    ±10%
    Warp&Twist:
    0.7%
    PCB Standard:
    IPC-A-610 E Class II-III
    Max Board Size:
    1200*600mm

    Product Name
    PCB PCBA manufacturer
    Application
    Telecom,Medical,Industrial Control,New Energy,Automobile,Robot, 5G Server,UAV
    Rigid
    FR-4,High Tg FR4,High CTI FR4,Halogen FreeFR4,Copper Aluminum plate
    Flexible
    Rogers,Arlon,Taconic,Nelco,Isola
    PCB Layer
    1-40layers
    PCB Shape
    Rectangle,square,Round,Irregular
    PCB Size
    50*50mm-910mm*600mm
    PCB Thickness
    0.1mm-8mm
    Max Finished Copper Thickness (Inner and outer)
    120OZ
    Min Base Copper
    1/3OZ
    Min Drilling Diameter
    0.1mm
    Min Drilling Tolerance
    +/-2mil
    Min Interlayer Tolerance
    +/-3mil
    Min Line Width/Spacing
    3mil/3mil
    Min Space (Hole to inner or outer side conductor)
    6mil
    Min BGA Diameter
    8mil
    HDI
    1-3steps Anylayer
    Surface Finished
    HASL,Lead-free HASL,ENIG, Ni/Au Plating,Gold Finger,Immersion Silver/Tin, OSP,ENIPG

    Aluminum SMD PCB Board Assembly Service Immersion Gold
