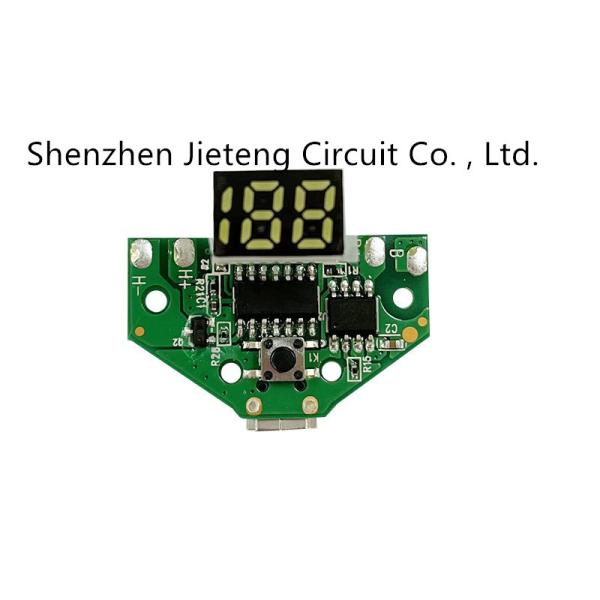

    Main Control SMD SMT Board Assembly 220V 50HZ 60HZ

    Ask Lasest Price
    Brand Name : JIETENG
    Model Number : PCBA
    Certification : ISO/TS16949/RoHS/TS16949
    Price : Negotiable
    Payment Terms : Negotiable
    Supply Ability : 50000 Square Meter/Square Meters per Month
    Delivery Time : 6-8 days delivery
    • Product Details
    • Company Profile

    Main Control SMD SMT Board Assembly 220V 50HZ 60HZ

    Main Control Board of medical devices keypad circuit board resin plug hole circuit board motherboard


    Essential details
    Model Number:
    PCBA
    Type:
    circuit board
    Place of Origin:
    Guangdong, China
    Brand Name:
    JIETENG
    Supplier Type:
    PCBA Manufacturer
    Copper Thickness:
    1 oz
    Min. Hole Size:
    0.2mm
    Min. Line Spacing:
    0.075mm
    Drilling size:
    Min 0.0078"(0.2mm)
    Base Material::
    FR4, FPC, Alum
    Item:
    happy digger pcb relay pcb 50a lcd tv motherboard pcb odm service
    Product name:
    PCBA Board Assembly
    PCBA service:
    xvideo audio and video player pcba for oem pcb eas rf pcb overmolding
    Service:
    One-stop Turnkey PCBA Service
    Application:
    Electronics Device
    MOQ:
    1 PCS

    Turnkey PCBA
    PCB+components sourcing+assembly+package
    Assembly details
    SMT and Thru-hole, ISO SMT and DIP lines
    Lead Time
    Prototype: 15 work days. Mass order: 20~25 work days
    Testing on products
    Flying Probe Test, X-ray Inspection, AOI Test, Functional test
    Quantity
    Min quantity: 1pcs. Prototype, small order, mass order, all OK
    Files needed
    PCB: Gerber files(CAM, PCB, PCBDOC)
    Components: Bill of Materials(BOM list)
    Assembly: Pick-N-Place file
    PCB Panel Size
    Min size: 0.25*0.25 inches(6*6mm)
    Max size: 20*20 inches(500*500mm)
    PCB Solder Type
    Water Soluble Solder Paste, RoHS lead free
    Components details
    Passive Down to 0201 size
    BGA and VFBGA
    Leadless Chip Carriers/CSP
    Double-sided SMT Assembly
    Fine Pitch to 0.8mils
    BGA Repair and Reball
    Part Removal and Replacement
    Component package
    Cut Tape,Tube,Reels,Loose Parts
    PCB assembly process
    Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
    Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
